0Cr25Al5 High Resistance Alloy
Introduction:
FeCrAl made 0Cr25Al5 resistance alloy has high resistivity, low resistance coefficient, high operating temperature and good oxidation resistance under high temperature. And its maximum applicable temperature reaches 1250℃.
| Style | Specification | ||

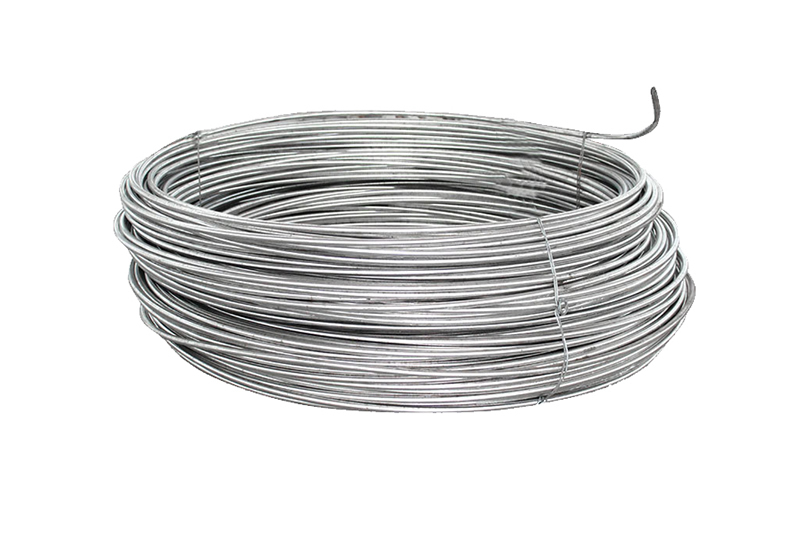

| Wire | Diameter: 0.03mm-8mm | ||
| Flat strip | Width: 0.4-40mm | Thickness: 0.03-2.9mm | |

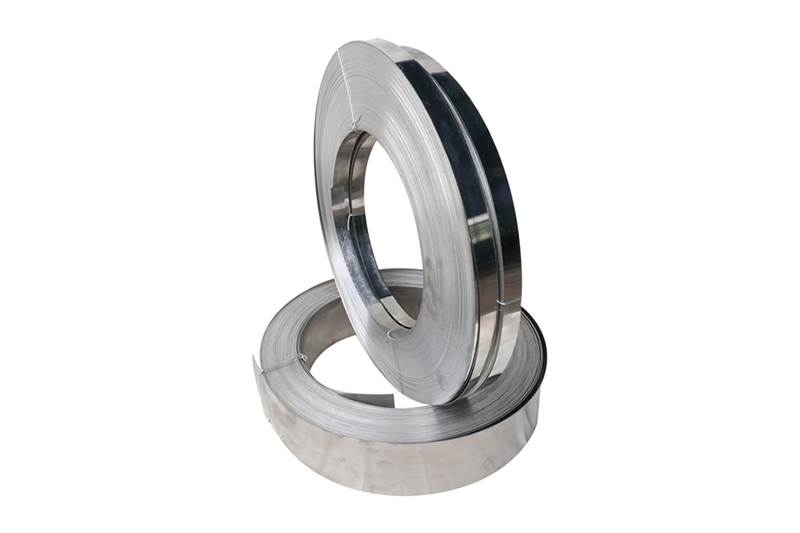

| Strip | Width: 8-250mm | Thickness: 0.1-3.0mm | |
| Foil | Width: 6-120mm | Thickness: 0.003-0.1 | |
| Rod | Diameter: 8-100mm | Length: 50-1000 mm | |
Application
0Cr25Al5 resistance alloy is mainly used to produce ceramic electric cooker, industrial furnace and various electric heating elements.
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| ≤ | |||||||||
| 0.06 | 0.025 | 0.025 | 0.70 | ≤ 0.60 | 23.0~26.0 | ≤ 0.60 | 4.5~6.5 | Bal. | - |
| Yield strength (Mpa) | Tensile strength (Mpa) | Elongation (%) | Density (g/cm3) | Resistivity (20℃) (Ω·mm2/m) | Heat conductivity (20℃) (W/(m·K)) | Average linear expansion coefficient (20℃-1000℃) (1/℃) | Specific heat capacity (20℃) (J/( kg℃)) | Melting point (℃) | Max. operating temperature (℃) | Magnetism |
| 500 | 700 | 23 | 7.10 | 1.42 | 13 | 15x10-6 | 0.46 | 1500 | 1250 | Non |
| 20℃ | 100℃ | 200℃ | 300℃ | 400℃ | 500℃ | 600℃ | 700℃ | 800℃ | 900℃ | 1000℃ | 1100℃ | 1200℃ | 1300℃ |
| 1 | 1.002 | 1.005 | 1.008 | 1.013 | 1.021 | 1.030 | 1.038 | 1.040 | 1.042 | 1.044 | 1.046 | 1.047 |
